Jumpvalley.Levels.Interactives.InteractiveNode Class Reference

A subclass of Interactive that operates over a Godot node. It makes using a Godot node's properties and metadata easier. See the relevant wiki sectionfor details. More...

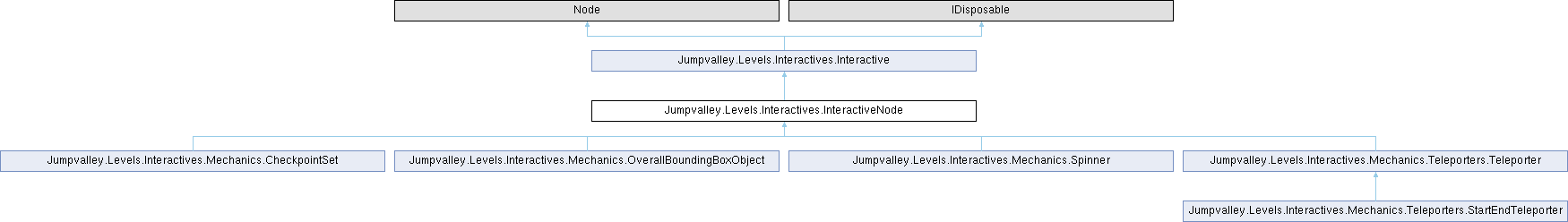

Inheritance diagram for Jumpvalley.Levels.Interactives.InteractiveNode:

Public Member Functions
	InteractiveNode (OffsetStopwatch stopwatch, Node nodeMarker)
	Creates a new instance of InteractiveNode for a given Stopwatch and Node
bool	TryGetMarkerMeta (string name, out Variant meta)
	Attempts to get the value of a metadata entry with a specified name if it exists and assigns it to the meta reference variable.
bool	TryGetMarkerMeta<[MustBeVariant] T > (string name, out T meta)
	Version of TryGetMeta(string, out Variant) that outputs the metadata entry value as a specified type T .
void	SetMarkerMeta (string name, Variant value)
	Sets the metadata entry belonging to NodeMarker with the given name to the specified value.
Public Member Functions inherited from Jumpvalley.Levels.Interactives.Interactive
	Interactive (OffsetStopwatch clock, object runner=null)
	Creates a new instance of Interactive that will run on the given OffsetStopwatch.
virtual void	Initialize ()
	Interactive initialization method that initializes the interactive after the constructor runs, in case such method is needed. By default, this method is only called once after the object's constructor runs. Initialize() typically shouldn't be called more than once for the same Interactive instance.
virtual void	Start ()
	The interactive's start method. This method is called every time the user starts or restarts the interactive, and it's a great place to put code that will be run after initialization, but just before the interactive starts.
virtual void	Stop ()
	The interactive's stop method. This method is called right after the user stops or exits the interactive.
new void	Dispose ()
	Disposes of this Interactive instance. This method is a great place to free up resources being used by the interactive instance, especially right before the interactive itself gets freed from memory.

Static Public Member Functions
static string	GetTypeNameFromMarker (Node nodeMarker)
	Returns the type name of an InteractiveNode defined in its node marker. The type name should be defined in the marker's metadata with the entry name type.
static Interactive	GetHandlerFromMarker (Node nodeMarker)
	Returns an interactive node's handler/operator instance corresponding to a given interactive node marker. If it can't be found, this method returns null. The handler/operator instance returned is the first found object whose type is Interactive and is a child of the given node marker. This method is mainly intended to be used for interactive node handlers that have ParentedToNodeMarker set to true.

Static Public Attributes
static readonly string	NODE_MARKER_NAME_PREFIX = "_Interactive"
	What an interactive's node marker name should begin with.

Properties
Node	NodeMarker [get]
	The node which indicates that its parent node is the root node of an interactive. Its name should begin with _Interactive
Node	RootNode [get]
	The interactive's root node.
bool	ParentedToNodeMarker [get, set]
	Whether or not this interactive node handler is parented to NodeMarker.
Properties inherited from Jumpvalley.Levels.Interactives.Interactive
bool	IsInitialized [get, protected set]
	Whether or not Initialize has been called once already.
bool	IsRunning [get, protected set]
	Whether or not the interactive is running (e.g. after Start has been called).
OffsetStopwatch	Clock [get]
	The OffsetStopwatch that the Interactive will run on. This stopwatch can be used to synchronize the Interactive's various operations to whatever the current time on this stopwatch is.

Additional Inherited Members
Public Attributes inherited from Jumpvalley.Levels.Interactives.Interactive
object	Runner
	The object that's running this interactive.

Detailed Description

A subclass of Interactive that operates over a Godot node. It makes using a Godot node's properties and metadata easier. See the relevant wiki section

for details.

Constructor & Destructor Documentation

InteractiveNode()

Jumpvalley.Levels.Interactives.InteractiveNode.InteractiveNode ( OffsetStopwatch stopwatch, Node nodeMarker )

inline

Creates a new instance of InteractiveNode for a given Stopwatch and Node

Parameters

stopwatch	The stopwatch to bind the interactive to
node	The node to operate over

Member Function Documentation

GetHandlerFromMarker()

static Interactive Jumpvalley.Levels.Interactives.InteractiveNode.GetHandlerFromMarker ( Node nodeMarker )

inlinestatic

Returns an interactive node's handler/operator instance corresponding to a given interactive node marker. If it can't be found, this method returns null.

The handler/operator instance returned is the first found object whose type is Interactive and is a child of the given node marker.

This method is mainly intended to be used for interactive node handlers that have ParentedToNodeMarker set to true.

Returns

GetTypeNameFromMarker()

static string Jumpvalley.Levels.Interactives.InteractiveNode.GetTypeNameFromMarker ( Node nodeMarker )

inlinestatic

Returns the type name of an InteractiveNode defined in its node marker.

The type name should be defined in the marker's metadata with the entry name type.

Returns

SetMarkerMeta()

void Jumpvalley.Levels.Interactives.InteractiveNode.SetMarkerMeta ( string name, Variant value )

inline

Sets the metadata entry belonging to NodeMarker with the given name to the specified value.

Parameters

name	The name of the metadata entry
value	The value to set the metadata entry to

TryGetMarkerMeta()

bool Jumpvalley.Levels.Interactives.InteractiveNode.TryGetMarkerMeta ( string name, out Variant meta )

inline

Attempts to get the value of a metadata entry with a specified name if it exists and assigns it to the meta reference variable.

Parameters

name	The name of the metadata entry
meta	The reference variable where the metadata entry value should be stored

Returns

true if the metadata entry under the given name was found and grabbing its value was successful, false otherwise.

TryGetMarkerMeta<[MustBeVariant] T >()

bool Jumpvalley.Levels.Interactives.InteractiveNode.TryGetMarkerMeta<[MustBeVariant] T > ( string name, out T meta )

inline

Version of TryGetMeta(string, out Variant) that outputs the metadata entry value as a specified type T .

Parameters

name	The name of the metadata entry
meta	The reference variable where the metadata entry value should be stored

Returns

true if the metadata entry under the given name was found and grabbing its value was successful, false otherwise.

---

The documentation for this class was generated from the following file:

• InteractiveNode.cs
